Outdoor P6 RGB Display Parameter
Pixel Item Parameter
Real Pixel pitch 6mm
Pixel composition 1R1G1B 3in1 SMD3535
LED tube LED tube Wavelength Luminance
Red tube core 620-630nm Pending
Pure green tube core 520-525nm Pending
Pure blue tube core 465-470nm Pending

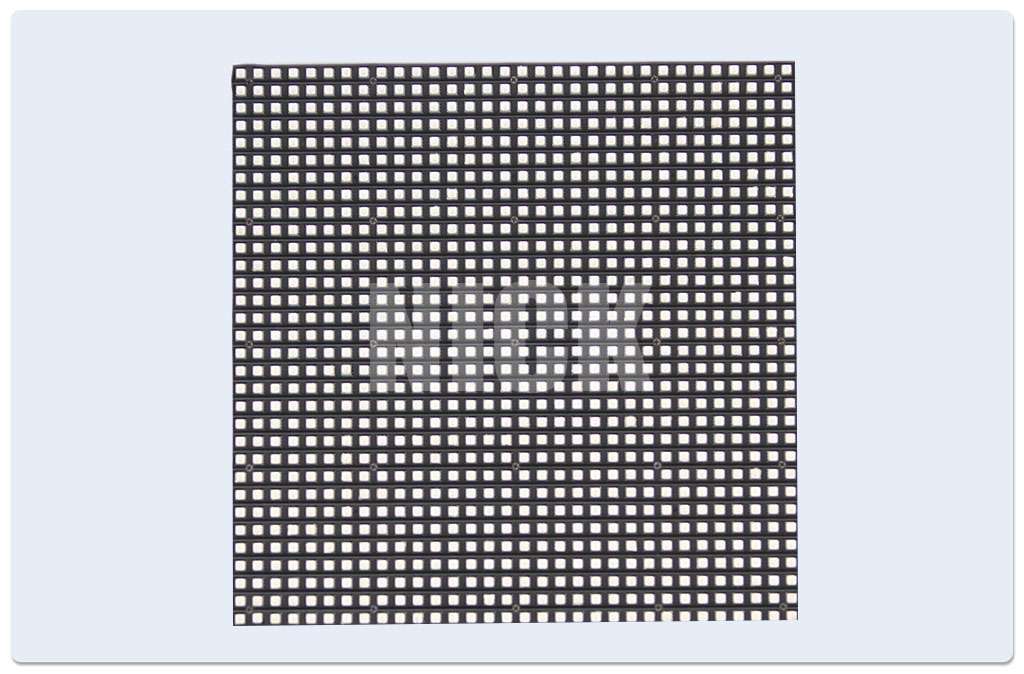

Module Module resolution 32 x32=1024pixels   【48 x48=2304pixels】
Module size 192MM x192MM         【288MM x288MM】

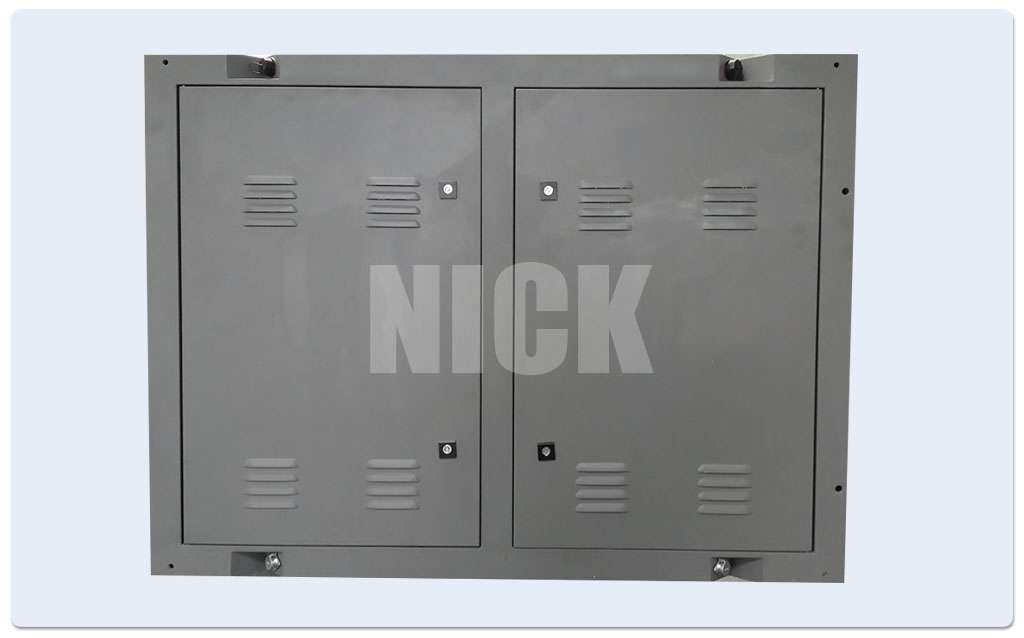

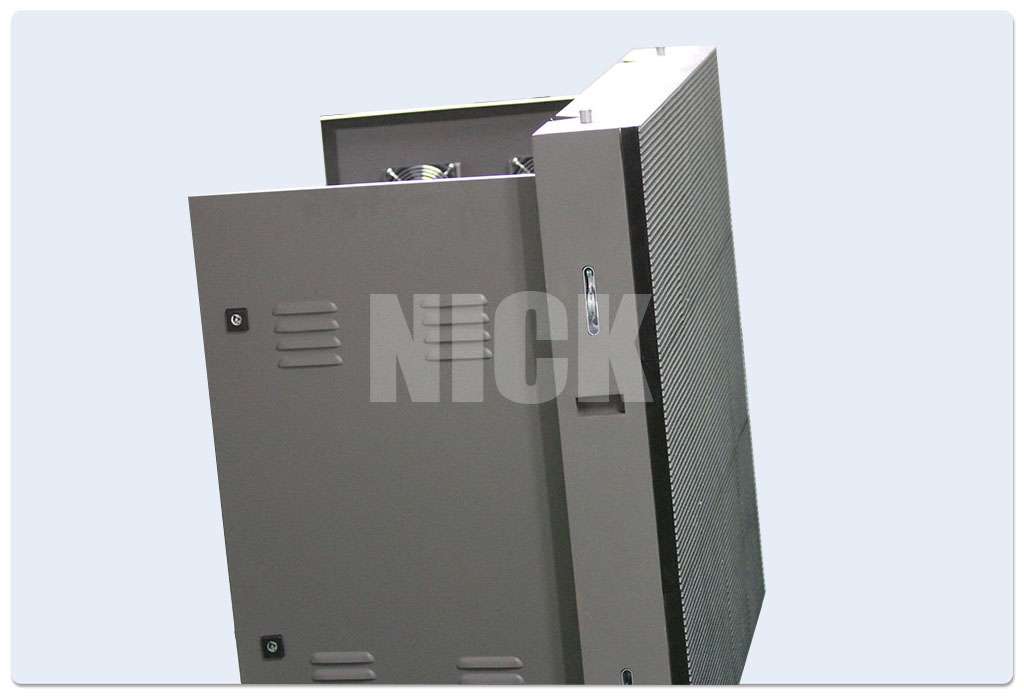

Cabinet Cabinet size 576MM x576MM x80MM
Cabinet resolution Real pixel: 9216pixels
Cabinet materials Die-cast aluminum
Screen Physical resolution /㎡ 27777pixels/㎡
Brightness ≥6000cd/㎡    【≥8000cd/㎡ 】
Brightness adjustment 100 level automatically
Scanning method 1/8 scan            【1/6 scan       】
Drive methods Constant current drive
Best Viewing angle Horizontal: 140 degrees, vertical: 140 degrees
Grey scale 65536 levels
Color processing 16bit
Display colors 281trillion
Contrast ratio 2000:01:00
Frame rate > 60 frames/sec
Refresh rate 300-3000HZ(no flickers while camcorder recording)
Control method Synchronized with computer monitor
Lifetime > 100,000 hours
Defects rate ≤0.0001
Operating voltage AC220V±15% 47~64HZ
Screen power consumption Max:1125w/㎡; Average:506w/㎡【Max:1800w/㎡; Average:810w/㎡】
Color temperature 6500K±500
Control distance. 100 m (no repeating) by net line; Optical fiber: 500m- 10km
IP level IP65 in the front, IP54 at the back
Operating temperature —20℃~+60℃
Operating ambient humidity 10%—95%RH
